New future for continuous challenges and growth
Variable Frequency Drive
PRODUCT INFO

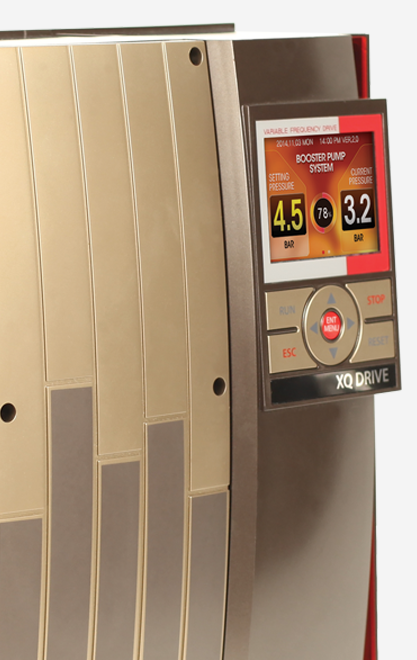

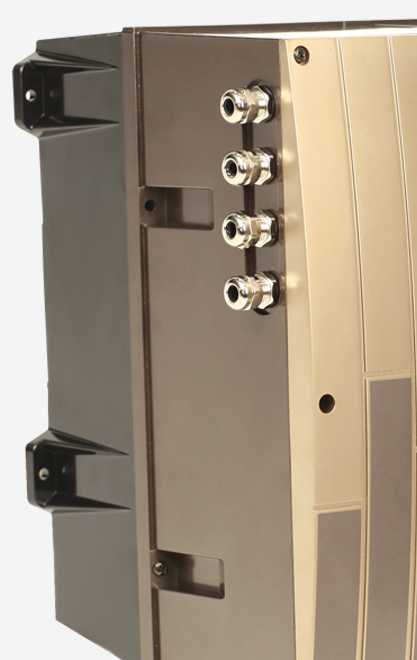

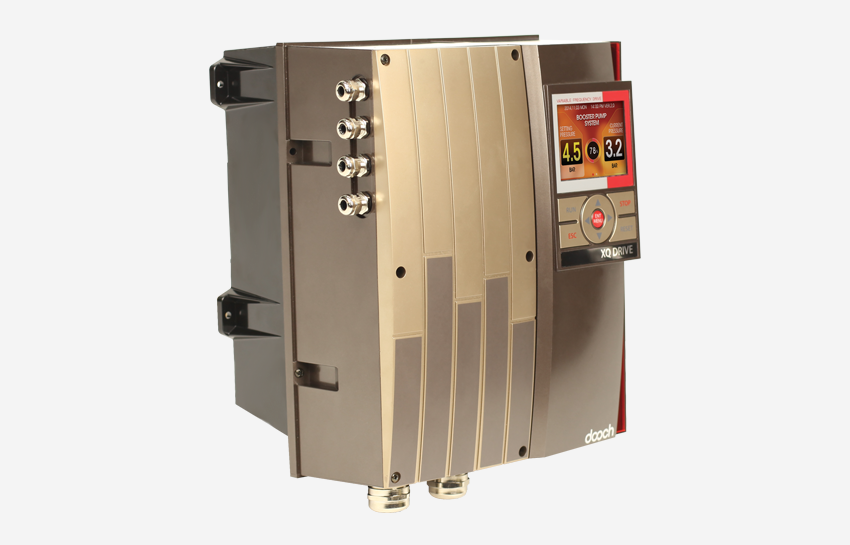

XQ-Drive
The Premium Pump Inverter that manages pump performance to match a wide range of system conditions and requirement
Available power
0.75~22kW
Input power
3PH 380~440V
Output power
3PH 380~440V
Frequency
50/60Hz
IP class
IP55
Communication
method
RS-485, Internet
Applications
- Washing system
- Pressure boosting system
- Air-Conditioning system
Features
· New hardware design (LCD display type)
· Energy savings up to 70%
· Multipump control capability up to 6 pumps
· Control mode – pressure/differential pressure
· Hydraulic control functions included
· Electrical and hydraulic pump protections
· Automatic recovery after power failure
· Easy retrofitting on existing pump system
· Mounted directly on standard I.E.C. motors
· Flexible installation (motor, wall)
· Built-in EMC filter and DC reactor
- Reduced noise and harmonic distortion
