New future for continuous challenges and growth
Variable Frequency Drive
PRODUCT INFO

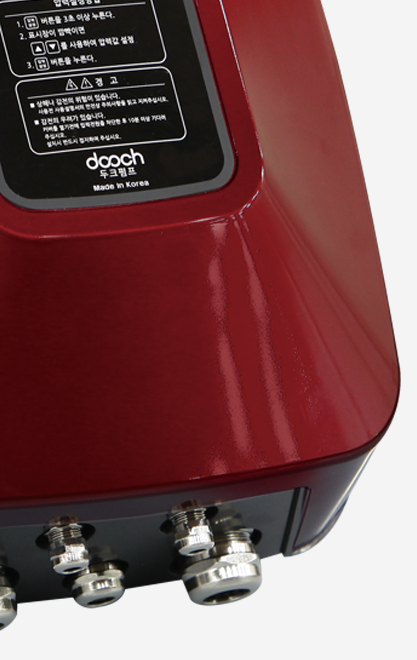

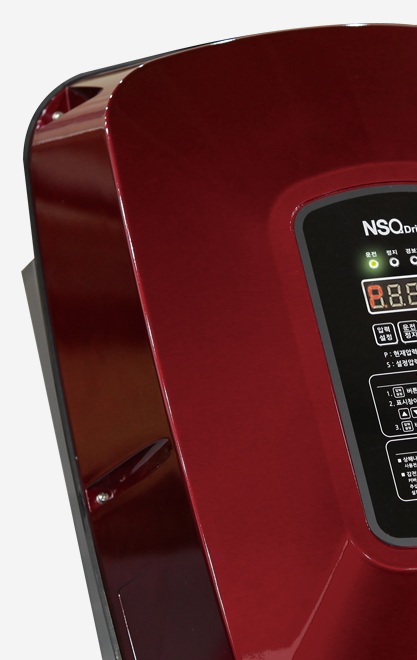

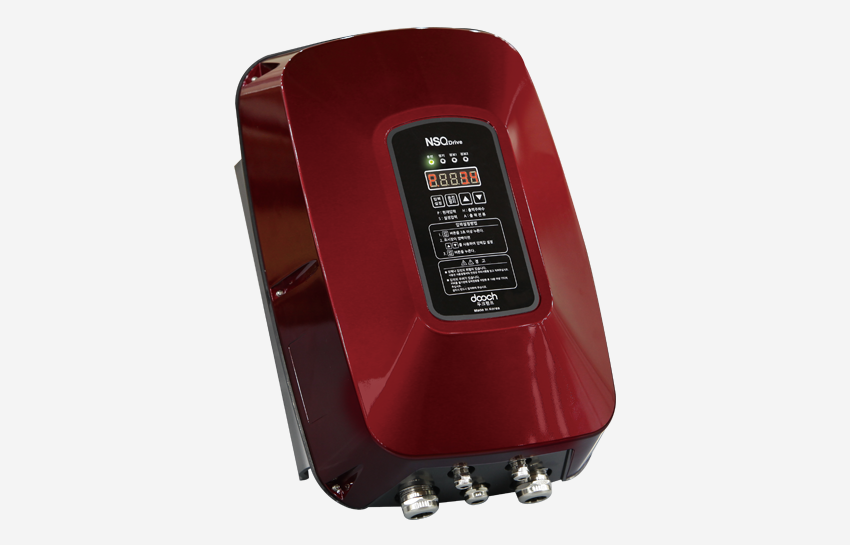

NSQ-Drive
Unlike conventional general-purpose inverters, the inverter and pump controller are integrated into one to completely control the performance of the pump according to operating conditions
Available power
0.4~22kW (50Hz), 0.75~22kW (60Hz)
Input power
3PH 380~440V (0.75~22kW, 50/60Hz), 1PH 200~230V (0.4~2.2kW)
Output power
3PH 380V (50Hz), 3PH 380~440V (0.75~22kW, 60Hz)
Frequency
50/60Hz
IP class
IP55
Communication
method
RS-485 (OPTION)
Applications
- Washing system
- Pressure boosting system
- Air-Conditioning system
Features
· Energy savings up to 70%
· Multipump control capability up to 6 pumps
· Control mode – pressure/differential pressure
· Hydraulic control functions included
· Electrical and hydraulic pump protections
· Automatic recovery after power failure
· Easy retrofitting on existing pump system
· Mounted directly on standard I.E.C. motors
· Flexible installation (motor, wall)
· FND display for easy status monitoring and programming
