Variable Frequency Drive
PRODUCT INFO

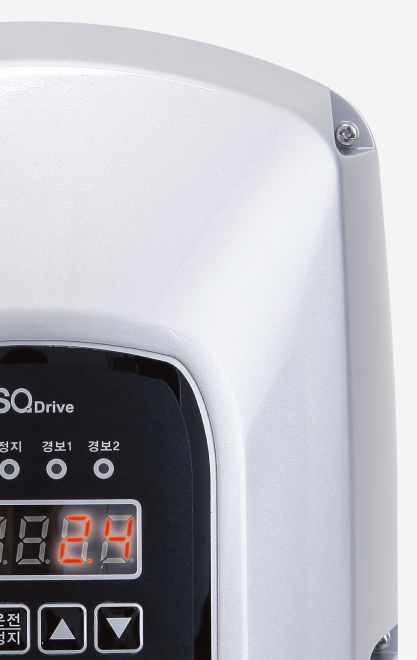

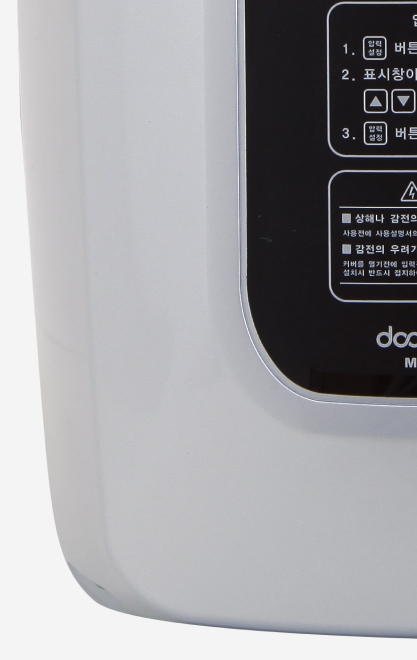

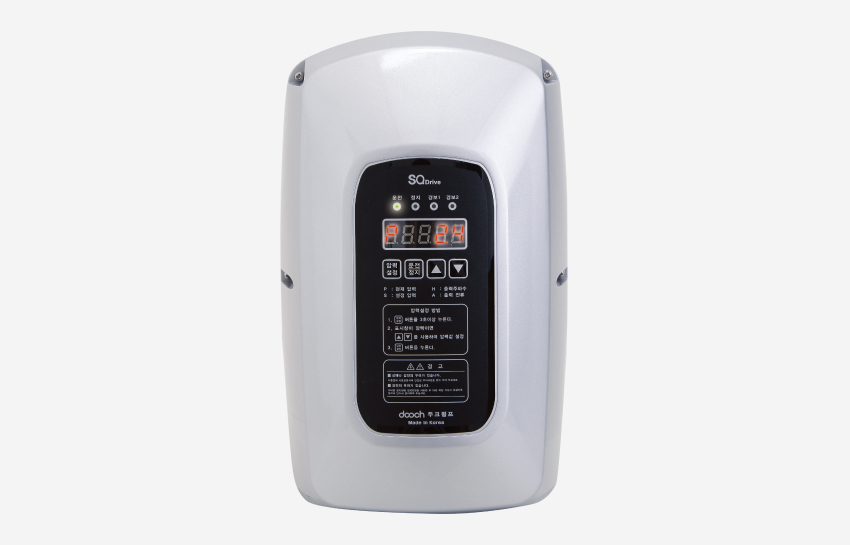

SQ2-Drive
ALL-IN-ONE pump control device that integrates the inverter and the pump controller into one to completely control the performance of the pump according to operating conditions
Available power
1.1~2.2kW
Input power
1PH 200~230V
Output power
3PH 200~230V
Frequency
50/60Hz
IP class
IP55
Communication
method
CAN
Applications
- Washing system
- Boiler feed system
- Pressure boosting system
Features
· Stand-alone inverter for a single pump
· Hydraulic control functions included
· Electrical and hydraulic pump protections
· Easy retrofitting on existing pump system
· Flexible installation (motor, wall)
· Small compact design and space saving
· FND display for easy status monitoring and programming
