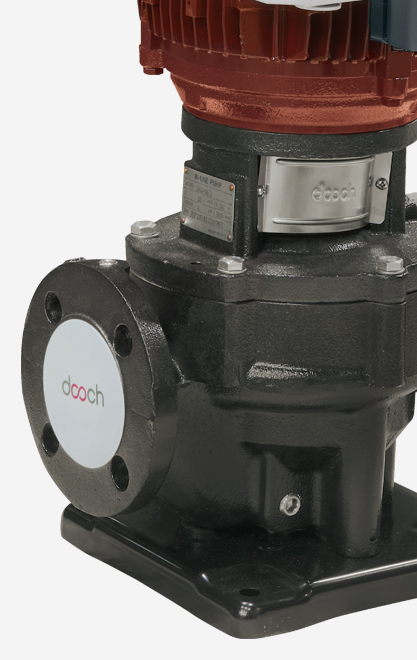

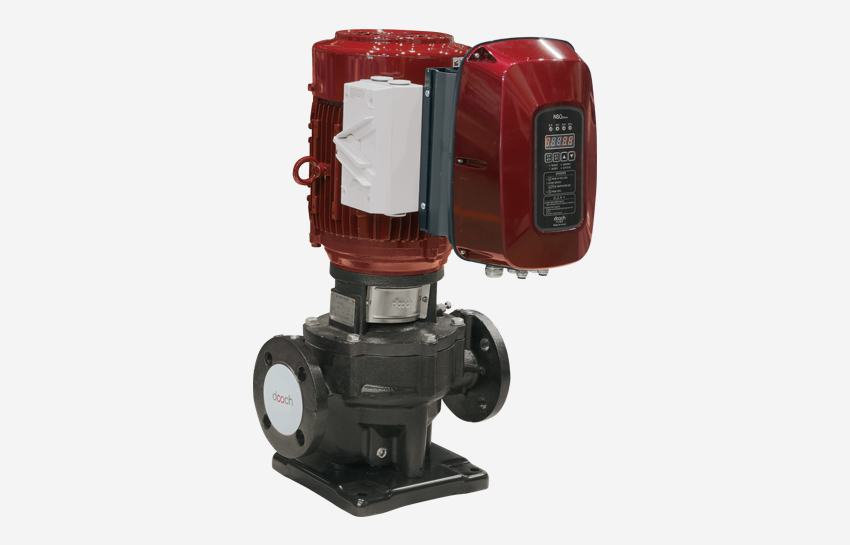

In-line Circulation Pump (Built in Inverter)
.jpg)
.jpg)
.jpg)
PRODUCT INFO
NSQ-DP

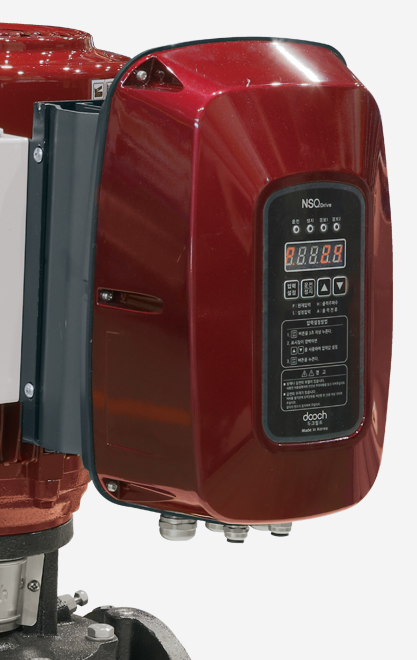

The In-line Pump with a Premium Variable Frequency Drive (NSQ-Drive, developed by Dooch own)
Max. Flow(Q)
480m³/h (50Hz), 500m³/h (60Hz)
Max. Head(H)
84m (50Hz), 91m (60Hz)
Motor power
0.75~22kW (1~30HP)
Power specification
· 50Hz - 3PH 380V / 1PH 220V · 60Hz - 3PH 380V
Frequency
50/60Hz
Applications
- Boiler feed system
- Cooling system
- Air-Conditioning system
- Household
- Industrial plant
- Cold & hot water circulation
Features
· Optimize the pump operation
· Water hammer protection and low noise operation
· Compact assembly and installation
· Eliminates the need for separate control panel, bypass lines and control valves
· Extend the life of the pump
· Easy and convenient installation
· User friendly
