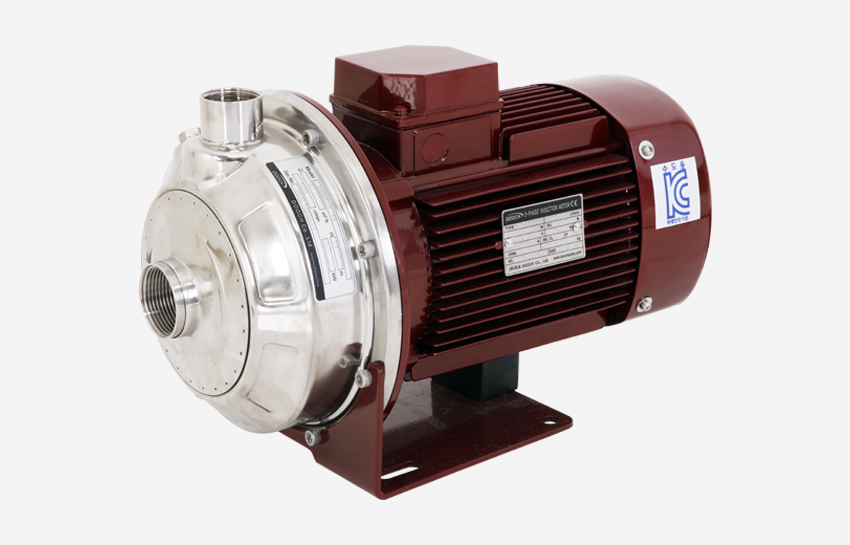

Horizontal Singlestage Pump
PRODUCT INFO
DHM
The Horizontal Singlestage Pump which is main components in contact with the fluid are made of stainless steel, durable and a 90 degree pump suction/discharge port
Max. Flow(Q)
27m³/h (50Hz), 24m³/h (60Hz)
Max. Head(H)
29m (50Hz), 44m (60Hz)
Operating pressure
Max. 8bar
Motor power
0.75~1.1kW (1~1.5HP, 50Hz), 0.75~2.2kW (1~3HP, 60Hz)
Power specification
3PH 220V/380V
Liquid temperature
-10~85°C
Frequency
50/60Hz
Applications
- Washing system
- Pressure boosting system
- Cooling system
- Air-Conditioning system
- R/O Filtration
- Agriculture & Irrigation
Features
· Singlestage centrifugal pump and features an axial suction and radial discharge
· Material of wet parts is stainless steel that prevents corrosion
· Compact structure: the pump is directly connected to the motor
· Convenient installation, screw thread water inlet and outlet
· Light weight, thin, plate pressing structure for main parts and components
