Individual Inverter Horizontal Pump
PRODUCT INFO
SQ2-DHF

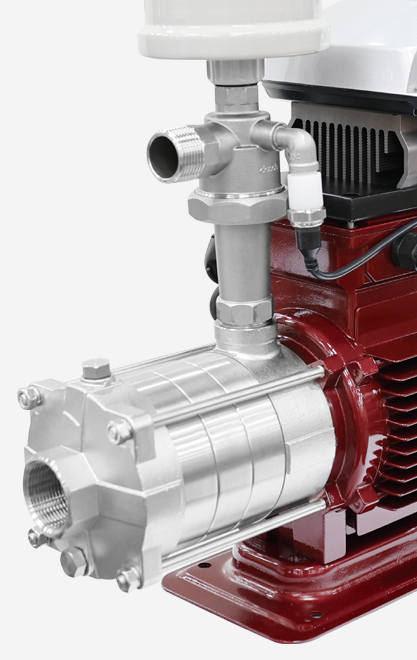

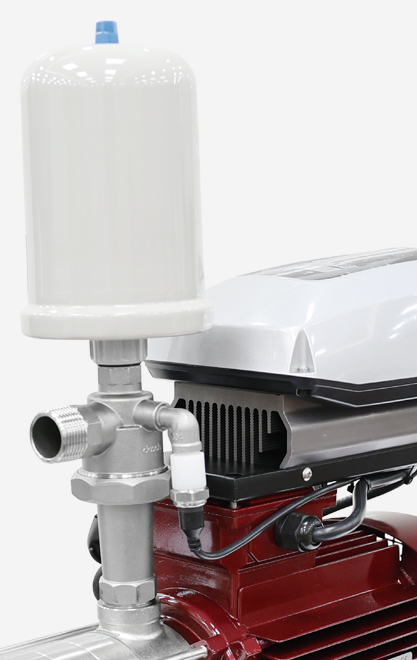

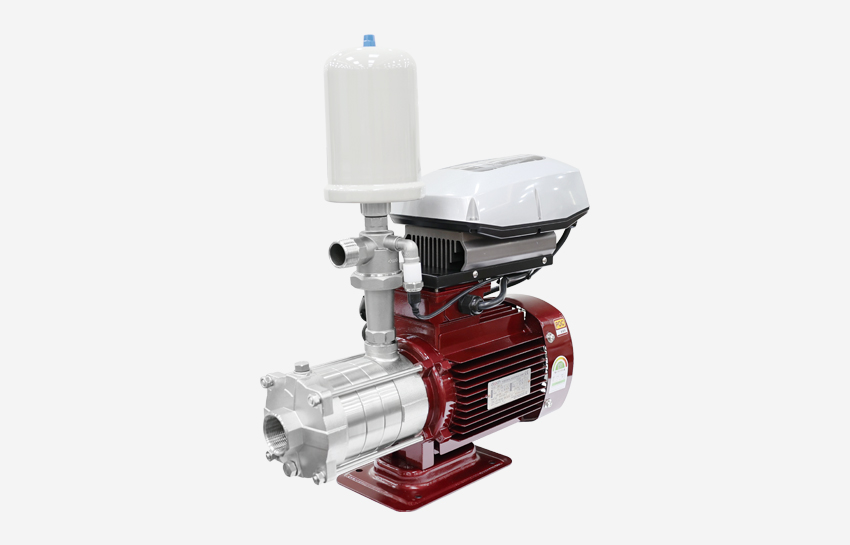

The Horizontal Multistage Pump of stainless steel with a Variable Frequency Drive (SQ2-Drive, developed by Dooch own)
Max. Flow(Q)
29m³/h (50Hz), 35m³/h (60Hz)
Max. Head(H)
56m (50Hz), 103m (60Hz)
Operating pressure
Max. 10bar
Motor power
0.37~2.2kW (0.5~3HP)
Power specification
1PH 200~230V (0.5~3HP)
Frequency
50/60Hz
Applications
- Washing system
- Sprinkler
- Pressure boosting system
- Cooling system
- Air-Conditioning system
- Household
- Industrial plant
Features
· Each pump is individually controlled by a SQ2-Drive
· High reliability (Multi-master control)
· Constant discharge pressure
· Less wear of the system during operation
· Compact assembly and installation
