Individual Inverter Horizontal Pump
PRODUCT INFO

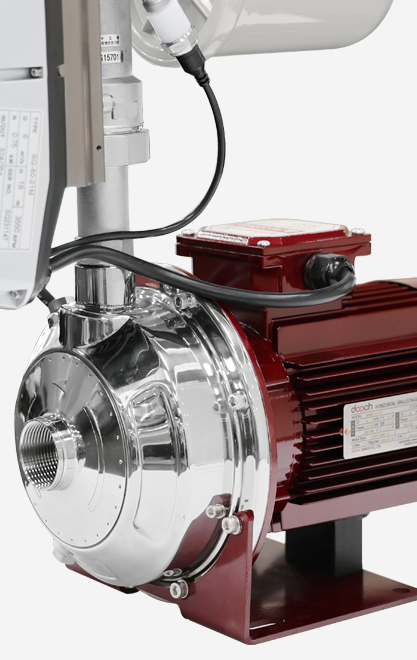

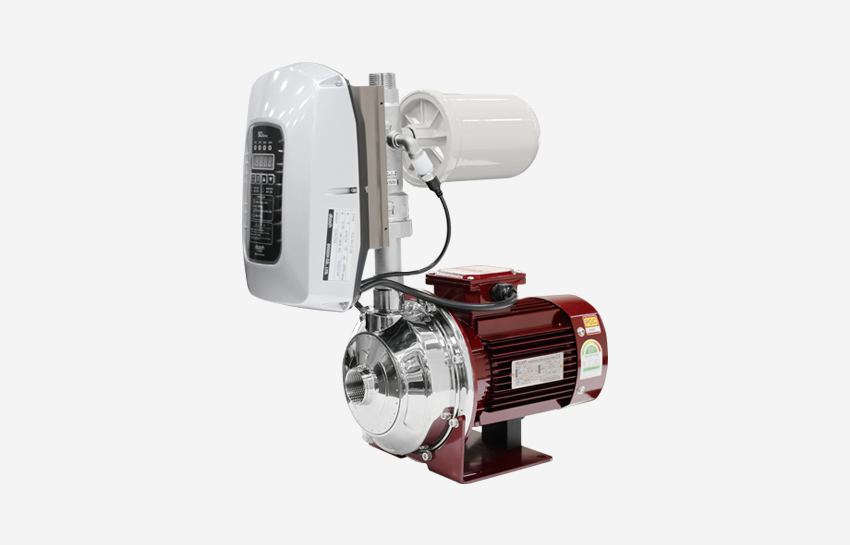

SQ2-DHM
The Horizontal Singlestage Pump of stainless steel with a Variable Frequency Drive (SQ2-Drive, developed by Dooch own)
Max. Flow(Q)
26m³/h (50Hz), 24m³/h (60Hz)
Max. Head(H)
30m (50Hz), 44m (60Hz)
Motor power
0.75~2.2kW (1~3HP)
Power specification
· 50Hz - 3PH 380~440V (0.5~3HP) / 1PH 200~230V (0.5~3HP) · 60Hz - 3PH 380~440V (1~3HP)
Frequency
50/60Hz
Applications
- Washing system
- Sprinkler
- Pressure boosting system
- Cooling system
- Air-Conditioning system
- Industrial plant
Features

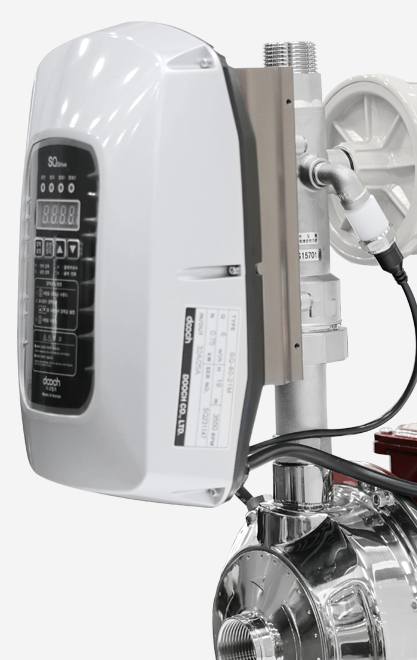

· Each pump is individually controlled by a SQ2-Drive
· High reliability (Multi-master control)
· Constant discharge pressure
· Less wear of the system during operation
· Compact assembly and installation
