New future for continuous challenges and growth

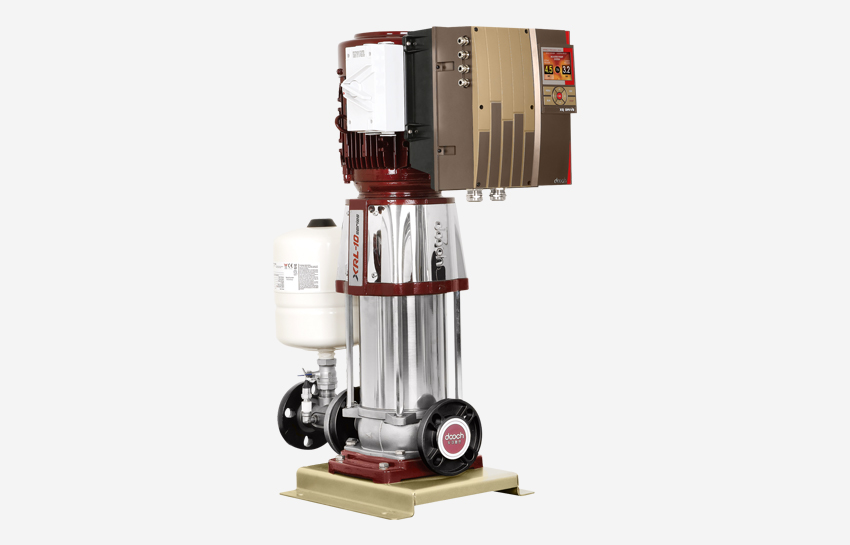

Built in Inverter Vertical Multistage Pump
PRODUCT INFO
XQ-XR(L)

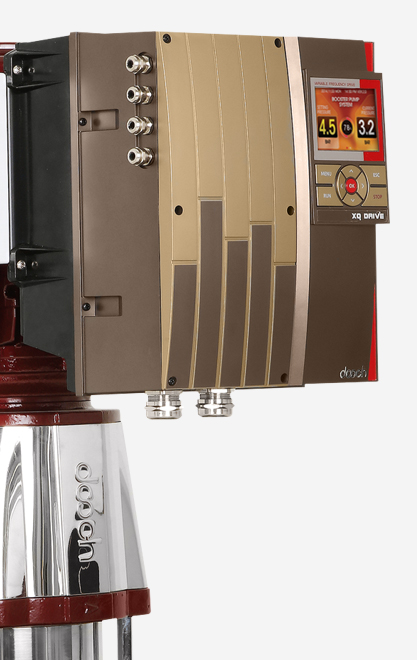

The Vertical Multistage Pump with a Premium Variable Frequency Drive (XQ-Drive, developed by Dooch’s own)
Max. Flow(Q)
240m³/h
Max. Head(H)
245m (50Hz), 249m (60Hz)
Operating pressure
Max. 30bar
Motor power
0.75~22kW (1~30HP)
Power specification
3PH 380~440V
Frequency
50/60Hz
Applications
- Washing system
- Boiler feed system
- Sprinkler
- Pressure boosting system
- Cooling system
- Air-Conditioning system
- Industrial plant
Features
· 3.5" Color display
· Built-in EMC filter / DC reactor
- Reduce noise and harmonic distortion
· Energy saving (Up to 50%)
· Maintains constant pressure
· Simplicity (Eliminates separate control panels)
· Soft start functionality to minimize mechanical stress on the pumping system
