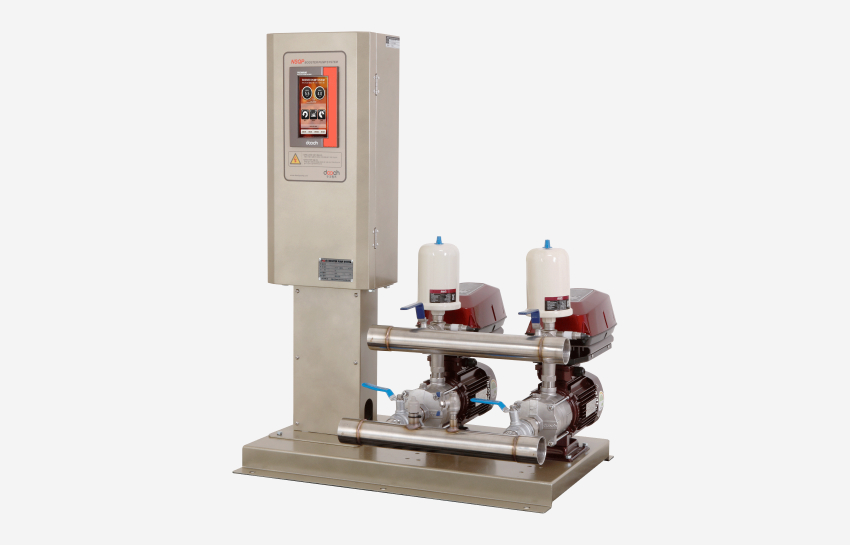

Individual Inverter Horizontal Booster Pump System
PRODUCT INFO
NSQP-2DHF
The Horizontal Multistage Booster Pump System of stainless steel built-in Variable Frequency Drive (NSQ-Drives, developed by Dooch own)
Max. Flow(Q)
58m³/h (50Hz), 70m³/h (60Hz)
Max. Head(H)
68m (50Hz), 103m (60Hz)
Motor power
0.55~7.5kW (0.75~10HP)
Power specification
· 50Hz - 3PH 380~440V (0.5~7.5HP), 1PH 200~230V (0.5~3HP) · 60Hz - 3PH 380~440V (0.75~10HP)
Frequency
50/60Hz
Applications
- Washing system
- Boiler feed system
- Sprinkler
- Pressure boosting system
- Cooling system
- Air-Conditioning system
- R/O Filtration
- Industrial plant
Features

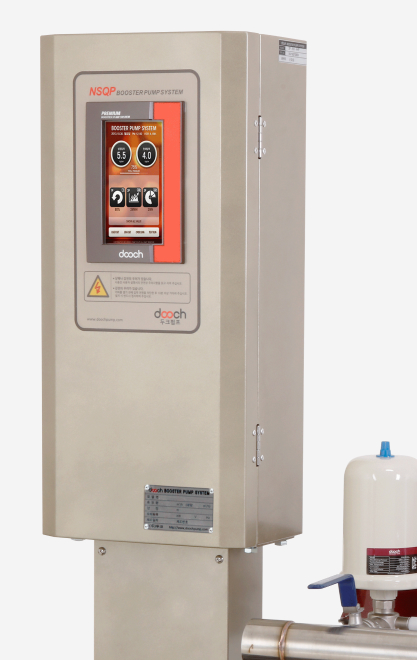

· 7" color LCD touch monitor
· Each pump is individually controlled by a NSQ-Drive
· High reliability (Multi-master control)
· Constant discharge pressure
· Reduced tank and panel sizes
· Less wear of the system during operation
· Compact assembly and installation
