Individual Inverter Horizontal Booster Pump System
PRODUCT INFO

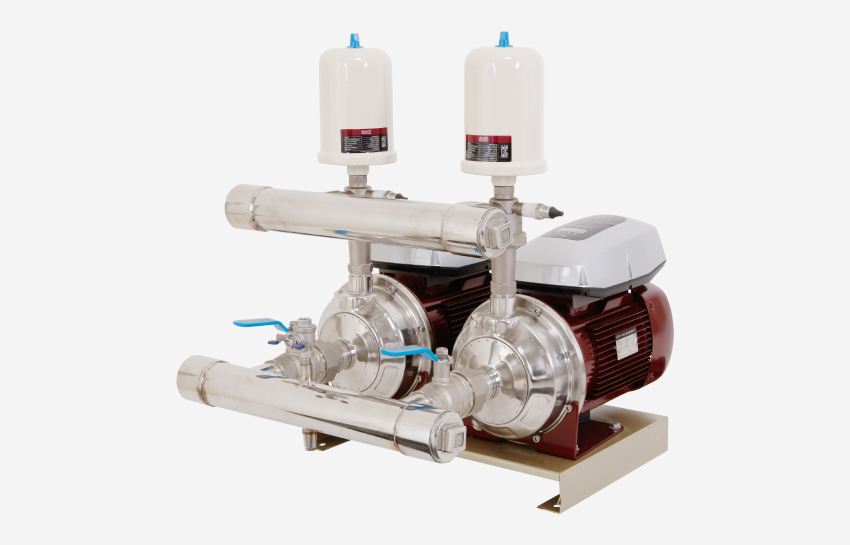

SQ2-2DHM

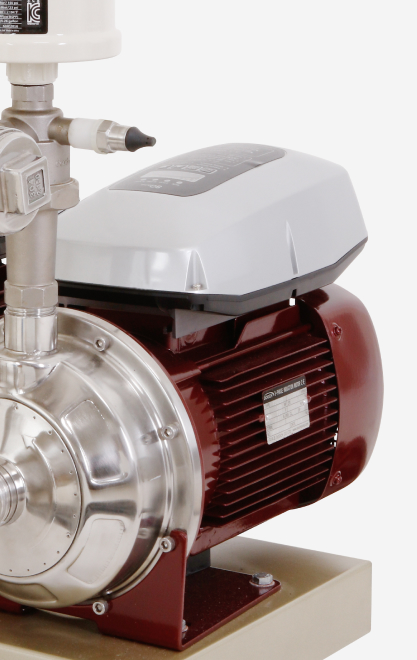

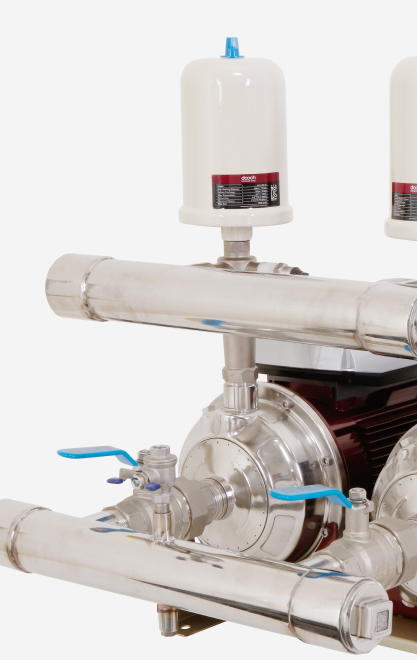

The Horizontal Singlestage Booster Pump System of stainless steel built-in Variable Frequency Drive (SQ2-Drives, developed by Dooch own)
Max. Flow(Q)
52m³/h (50Hz), 48m³/h (60Hz)
Max. Head(H)
30m (50Hz), 44m (60Hz)
Power specification
· 50Hz - 1PH 200~230V (0.5~3HP) · 60Hz - 1PH 200~230V (1~3HP)
Frequency
50/60Hz
Applications
- Washing system
- Boiler feed system
- Sprinkler
- Pressure boosting system
- Cooling system
- Air-Conditioning system
- R/O Filtration
- Industrial plant
Features
· Each pump is individually controlled by a SQ2-Drive
· High reliability (Multi-master control)
· Constant discharge pressure
· Reduced tank and panel sizes
· Less wear of the system during operation
· Compact assembly and installation
